Products

DESCRIPTION

Basic Info

Warranty	1 Year
Material	Steel
Type	Fixed and Mobile
Structural Style	Multi-Pole Scaffolding
Framework	Combined Scaffolding
Supporting Mode	Projecting Scaffolding
Lapping Form	Full Scaffolding
Erection Position	External and Internal Scaffolding
Scaffolding Part Type	Scaffolding Props
Construction Properties	Building Scaffold
Surface	Hot DIP Galvanized
Steel Grade	Q355b, Q235B, Q195b Welded Tube
System	48mm System, 60mm System
Tube Size	48.3*3.2mm, 48.3*2.75mm, 60.3*3.2mm
Ledger	0.6m, 0.9m, 1.2m, 1.5m, 1.8m or as Per Request
Components	Base Collar, Catwalk, Staircase, Bracket, etc
MOQ	1 Ton
Transport Package	Packed by Steel Strip or by Pallet
Specification	vertical 0.5M/1.0M/1.5M/2.0M/2.5M/3M
Trademark	WUFANG
Origin	China
HS Code	73084000
Production Capacity	8000 Tons/Month

Product Description

Product Parameters

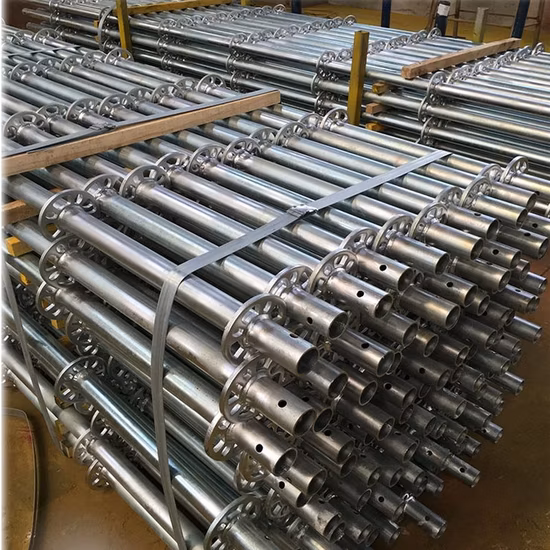

Ringlock Scaffolding Vertical Standard with/without Spigot Q355B Steel Tubes OD48.3 x 3.2mm
	Code	Item	Length
	WF-RV001	1'8" Standard (1 Ring) 0.5M	0.5M	1'8"
	WF-RV002	3'3" Standard (2 Ring) 1.0M	1.0M	3'3"
	WF-RV003	4'11" Standard (3 Ring) 1.5M	1.5M	4'11"
	WF-RV004	6'6" Standard (4 Ring) 2.0M	2.0M	6'7"
	WF-RV005	8'2" Standard (5 Ring) 2.5M	2.5M	8'2"
	WF-RV006	9'9" Standard (6 Ring) 3.0M	3.0M	9'10"
Ringlock Scaffolding Horizontal Ledger Q355B/Q235B Steel Tube OD48.3 x 3.2mm/3.0mm/2.75mm/2.5mm
	Code	Item	Length
	WF-RL001	Ringlock Ledger 0.65M	0.65M	2'2"
	WF-RL002	Ringlock Ledger 1.07M	1.07M	3'6"
	WF-RL003	Ringlock Ledger 1.57M	1.57M	5'2"
	WF-RL004	Ringlock Ledger 2.13M	2.13M	7'
	WF-RL005	Ringlock Ledger 2.44M	2.44M	8'
	WF-RL006	Ringlock Ledger 3.05M	3.05M	10'
Ringlock Scaffolding Diagonal Brace Q355B/Q235B OD48.3 x 3.2mm/3.0mm/2.75mm/ 2.5mm Q195B Steel Tube OD42.2 x 2.75mm
	Code	Item	Width (Size A)	Height (Size H)
	WF-RD001	Ringlock Brace 0.65x2.0M	0.65M	2.0M
	WF-RD002	Ringlock Brace 1.07x2.0M	1.07M	2.0M
	WF-RD003	Ringlock Brace 1.57x2.0M	1.57M	2.0M
	WF-RD004	Ringlock Brace 2.13x2.0M	2.13M	2.0M
	WF-RD005	Ringlock Brace 2.44x2.0M	2.44M	2.0M
	WF-RD006	Ringlock Brace 3.05x2.0M	3.05M	2.0M
	Code	Item	Size (mm)	Effective Length
	WF-RBC001	Ringlock Base Collar 0.20M	48.3x3.2x200	0.20M
	WF-RBC002	Ringlock Base Collar 0.25M	48.3x3.2x250	0.25M
	WF-RBC003	Ringlock Base Collar 0.35M	48.3x3.2x350	0.35M
	WF-RBC004	Ringlock Base Collar 0.5M	48.3x3.2x500	0.50M

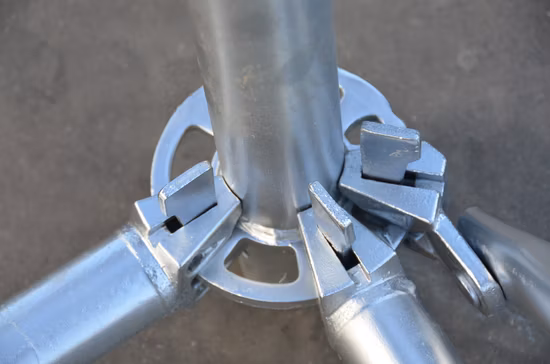

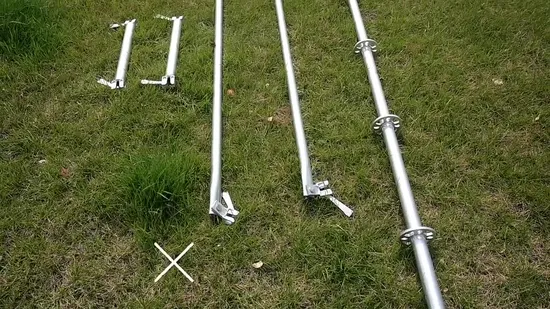

Ringlock Scaffolding Accessories

Ringlock Scaffolding System Advantages:
Save Time, Save Money, Faster, Stronger, Safer and More Profitable1. Saving time: Shorter assembly time, shorter dismantling time and lower labor costs. Savings in time from superior system technology: 8 hole rosette, self-securing assembly, automatic right angles, a few basic components, material-saving logical assembly.2. Less quantity: The high load-bearing capacity reduces the required material to a minimum. Therefore reduce transport costs, reduce labor costs.3. Lower maintenance costs: High grade steel with superior hot-dip galvanizing ensure little maintenance and long economic life.4. More profitable: Lower labor, transport and maintenance costs typically result in more profits.5. Flexible: Access, Shoring, Performance Stage, Spectator Stand, Lighting Tower, Mobile Scaffold, Temporary Bridge, Facade Screening and a host of other applications. Ringlock scaffolding system can provide a whole range of solutions to suit your needs. Being flexible also means that you could engage in business across a wide range of industries. This provides you with opportunities limited only by your imagination.

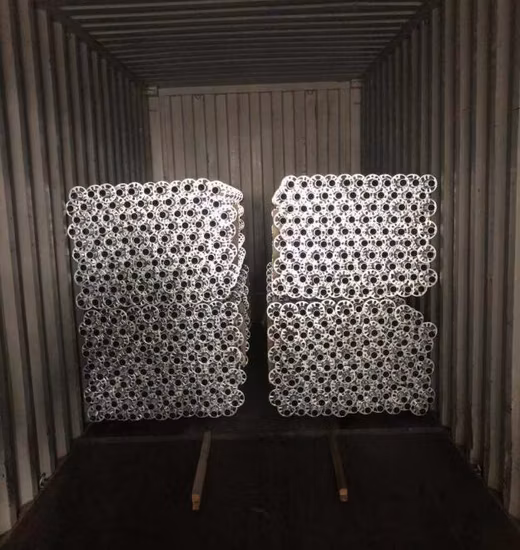

Packaging & Shipping

Application

Company Profile

Tangshan Wufang Industry , with an investment of U.S. Dollars of 8 million, is a professional manufacturer engaged in the design, production & sale of scaffolding systems.

1. Location: Tangshan Wufang is leading scaffolding manufacturer, located in Tangshan, Hebei Province, the raw material basement.2. Team: We have professional team for sale, project design and construction.3. Main products: Ringlock Scaffolding, Frame Scaffolding, Steel Plank, Catwalk, Ladders, Pipe & Clamp, Steel Prop, etc.4. Production capacity: 7000-10000 Tons/month.5. Loading capacity: 8-12 containers/day.6. Delivery time: 10-15 days for 3-5 containers.Fast delivery to satisfy your urgent project demand.

FAQ

Q1: Are you a factory or trading company? A: We are a factory specializing in manufacturing scaffolding material.Q2: Where is the loading port?
A: Tianjin(Xingang) Port.
Q3: What's the MOQ of the product?
A: Different item has different MOQ. Normally one Container is preferred.Q4: What certificates do you have?
A: We have ISO 9001, SGS certification.Q5: Can I get some samples? A: Yes, but usually the customer will pay for the cost and freight charges. Q6: Do you have an OEM service?
A: Yes. We can provide OEM and ODM services as your requirements.Q7: How long is the production cycle after ordering?
A: General it is about 15-30 days, according to different quantity requirement.
